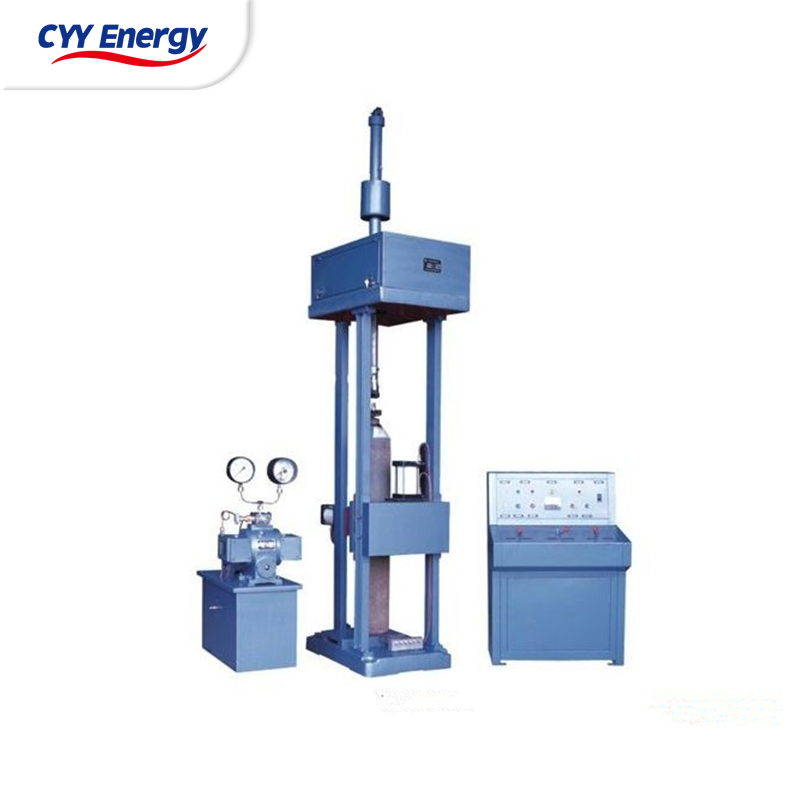

Model: GC-1/35A type cylinder internal method hydraulic testing machine
Technical parameter
Technical Parameter: | |
Gas cylinder elevating stroke | 30mm |
Stroke of main shaft for driving | ~530mm |
Angle of inclination of gas cylinder | 150° |
Motor speed | 1400r/min |
Applicable gas cylinder specification | Diameter 200~350mm Height 1100~1800mm |
Power supply | 380v/50hz |
Rated test pressure | 35Mpa |
Cylinder gripping stroke | 120mm |
Motor power | 1.5kw |
| Working pressure | 0.6~1Mpa |
| Air requirements per hour | 0.4m3 |
| Speed of the vertically rotating main shaft | 19r/min |
2. Picture:
3. Product description:
This device is applicable to hydraulic pressure test for gas cylinder. It can unscrew valve, carry out hydraulic pressure test, overturn cylinder to discharge residual water, and conduct residual deformation test. It tests the pressure in free mode. It is a national patent advanced product for test of cylinder.
Model: GC-1/35A type cylinder internal method hydraulic testing machine
Technical parameter
Technical Parameter: | |
Gas cylinder elevating stroke | 30mm |
Stroke of main shaft for driving | ~530mm |
Angle of inclination of gas cylinder | 150° |
Motor speed | 1400r/min |
Applicable gas cylinder specification | Diameter 200~350mm Height 1100~1800mm |
Power supply | 380v/50hz |
Rated test pressure | 35Mpa |
Cylinder gripping stroke | 120mm |
Motor power | 1.5kw |
| Working pressure | 0.6~1Mpa |
| Air requirements per hour | 0.4m3 |
| Speed of the vertically rotating main shaft | 19r/min |
2. Picture:
3. Product description:
This device is applicable to hydraulic pressure test for gas cylinder. It can unscrew valve, carry out hydraulic pressure test, overturn cylinder to discharge residual water, and conduct residual deformation test. It tests the pressure in free mode. It is a national patent advanced product for test of cylinder.
