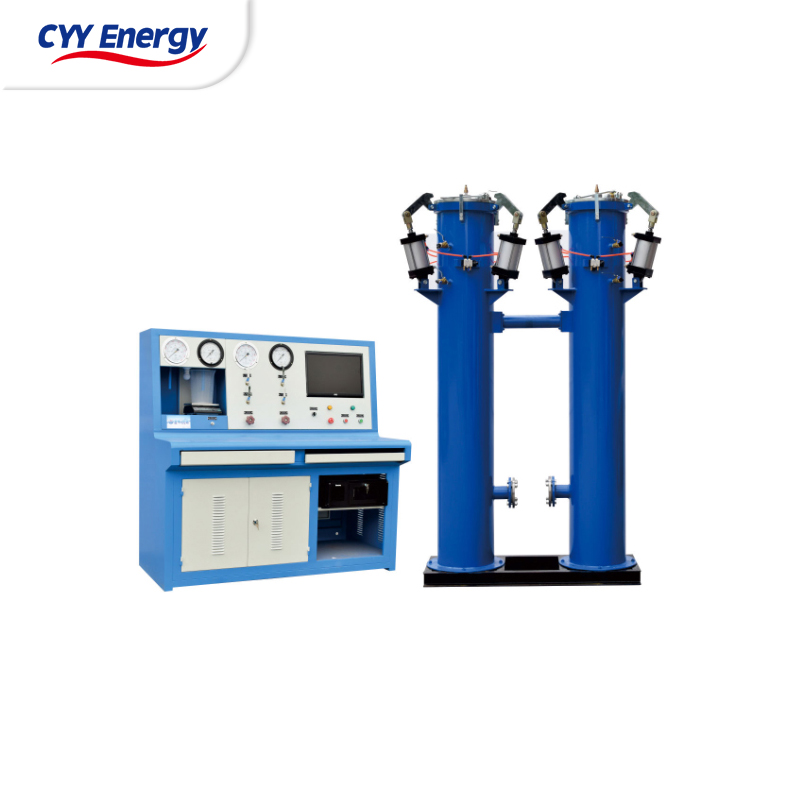

Model: WS-II hydraulic test device for cylinder based on external measurement
Technical Parameter:
Technical Parameter: | |
Water jacket specifications | 360mm x 1800mm Stainless steel/double water jacket |
Equipped with pneumatic pump | Two sets |
Press hard the pressure test bucket cap over the cylinder | φ100x100 |
Pressure transducer | 0~40MPa |
Equipped with electronic balance | 0~1500g |
Test pressure | 22.5MPa |
Pressure of working air | 0.6~0.8MPa |
Working power supply | AC220V /50HZ |
Console dimensions | 1420x840x1650mm |
2. Product description:
WS-II Hydraulic test device for cylinder based on external measurement developed by this company can be applied in the hydraulic test of high-pressure cylinder based on external measurement. In the test, the residual deformation rate of the cylinder can be measured accurately to guarantee the safe operation of the cylinder.
This devicee adopts advanced pressure sensor, water-volume measuring component, advanced digital circuit and microprocessor. The test procedure is under the control of the microprocessor. The pressure, deformation, residual deformation, and residual deformation rate are all recorded and calculated automatically. A final report is available. It is an ideal device for hydraulic test device for cylinder based on external measurement, complying with GB/T9251.
3. Product pirctures:
Model: WS-II hydraulic test device for cylinder based on external measurement
Technical Parameter:
Technical Parameter: | |
Water jacket specifications | 360mm x 1800mm Stainless steel/double water jacket |
Equipped with pneumatic pump | Two sets |
Press hard the pressure test bucket cap over the cylinder | φ100x100 |
Pressure transducer | 0~40MPa |
Equipped with electronic balance | 0~1500g |
Test pressure | 22.5MPa |
Pressure of working air | 0.6~0.8MPa |
Working power supply | AC220V /50HZ |
Console dimensions | 1420x840x1650mm |
2. Product description:
WS-II Hydraulic test device for cylinder based on external measurement developed by this company can be applied in the hydraulic test of high-pressure cylinder based on external measurement. In the test, the residual deformation rate of the cylinder can be measured accurately to guarantee the safe operation of the cylinder.
This devicee adopts advanced pressure sensor, water-volume measuring component, advanced digital circuit and microprocessor. The test procedure is under the control of the microprocessor. The pressure, deformation, residual deformation, and residual deformation rate are all recorded and calculated automatically. A final report is available. It is an ideal device for hydraulic test device for cylinder based on external measurement, complying with GB/T9251.
3. Product pirctures:
