Technical Requirements
1,The cylinder is designed, manufactured, Inspected in accordance withEN IS0 11118:2015;
2,The gas cylinder is made of HP325 which meets the requirements ofGB/T 6653-2017 similar as 1.0437 of EN 10120:2008;
2.1,The chemical compositions should be rechecked according to stove number andhave the following limits:
2.2,Mechanical propenties should meet the following requirements:
3,The weld between upper and bottom end with cylinder body should adopt mixed gas (Ar+C02=8: 2) arc welding.
The welding wire type is ER50-6.The welded construction meets the repuirements of Item 8.1.1.2 in EN ISO 11118: 2015:
4,Non-refillable valves shall be attachedwith non-refillable cylinders permanentlyrefer to installing specification no.TB-GY-03)
5.High-frequency resistance welding orplasma arc welding is used for the longitudinal welds of cylindrical body;
Parameters:
Products Name | N20 Cylinder |
| Type | 2.2L N2O cylinder |
| Water capacity | 2.2L |
| Purity | 99.99% |
| Working pressure | - |
| Test pressure | 160bar |
| Color | Green, Black,White, Blue, Gray, as Requested. |
| Filling medium | Nitrous oxide |
| Packing | 1.bulk loading; 2.packed in nylon net,carton/pallet; 3.packing in wooden pallets;4.as requested |

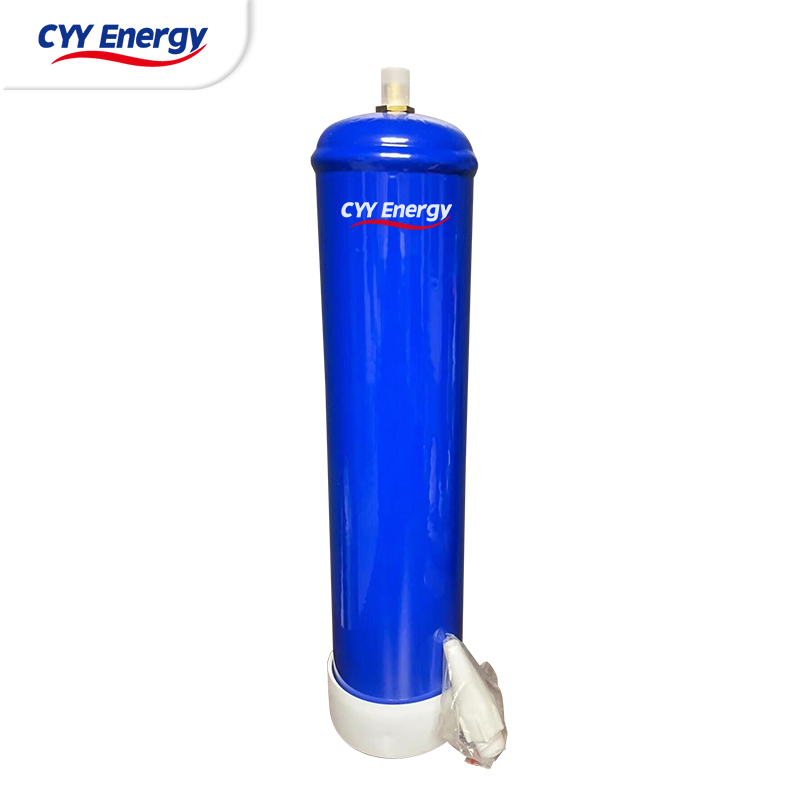

Product picture
Technical Requirements
1,The cylinder is designed, manufactured, Inspected in accordance withEN IS0 11118:2015;
2,The gas cylinder is made of HP325 which meets the requirements ofGB/T 6653-2017 similar as 1.0437 of EN 10120:2008;
2.1,The chemical compositions should be rechecked according to stove number andhave the following limits:
2.2,Mechanical propenties should meet the following requirements:
3,The weld between upper and bottom end with cylinder body should adopt mixed gas (Ar+C02=8: 2) arc welding.
The welding wire type is ER50-6.The welded construction meets the repuirements of Item 8.1.1.2 in EN ISO 11118: 2015:
4,Non-refillable valves shall be attachedwith non-refillable cylinders permanentlyrefer to installing specification no.TB-GY-03)
5.High-frequency resistance welding orplasma arc welding is used for the longitudinal welds of cylindrical body;
Parameters:
Products Name | N20 Cylinder |
| Type | 2.2L N2O cylinder |
| Water capacity | 2.2L |
| Purity | 99.99% |
| Working pressure | - |
| Test pressure | 160bar |
| Color | Green, Black,White, Blue, Gray, as Requested. |
| Filling medium | Nitrous oxide |
| Packing | 1.bulk loading; 2.packed in nylon net,carton/pallet; 3.packing in wooden pallets;4.as requested |
Product picture
